2018New Type House Roof Ridge Cap Roll Forming Making Machine
Product Description
Ridge Cap Roll Forming Machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
Components of the machine:
| No | Name | Quantity |
| 1 | Decoiler | 1set |
| 2 | Main Machine | Feeding Device | 1set |
| Roll Forming | 1set |
| Cutting Device | 1set |
| Hydraulic System | 1set |
| 3 | Electric Control System | 1set |
| 4 | Supporter/Automatic Stacker | 1set |
Main technical parameter:
DECOILER
(1) Max. Width: 1500 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 14roller stations
(3) Diameter of shaft: 70mm
(4) Frame panel thickness: 20mm
(5) Motor Power: 3kw
(6)Driven type: 1.0＂Chain
PRESSING AND CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC58-62°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3kW
(5) Press tool material: Cr 12 steel after heat-treated
PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
HYDRAULIC PUMP STATION
(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

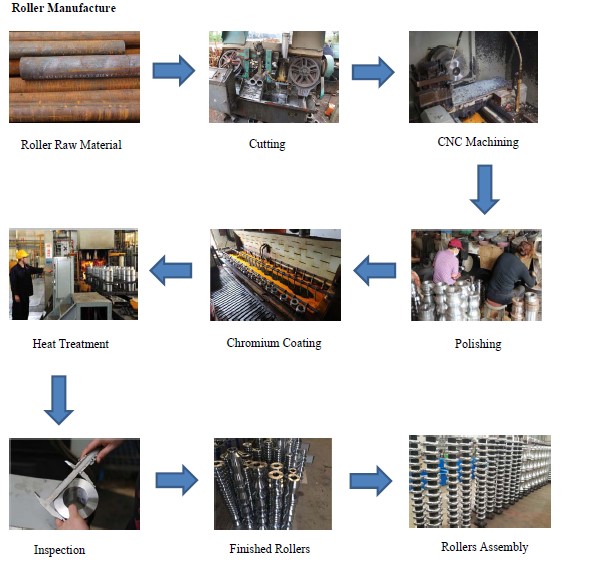

Processing:

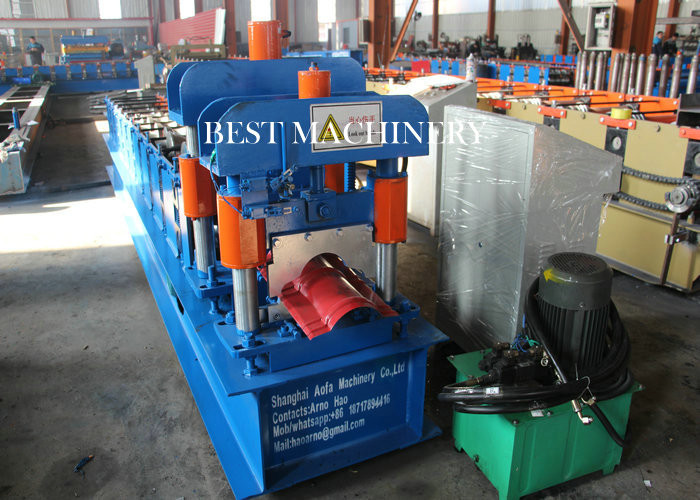

Machine Photo:
Standard export packing:
1. 1*40 GP container ; main machine naked and fastened with iron wire in the container.
2. Rollers were painted with oil and packed with plastic film.
3. Electrics devices be packed with wooden box.for Standard export packing.
