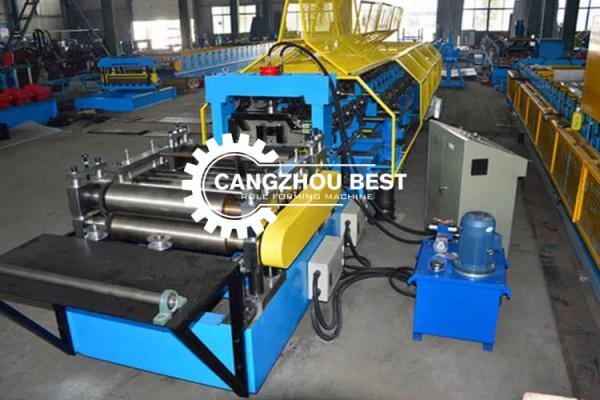

Gcr15 High Steel Profile 3.0mm C Purlin Machine

Name: Gcr15 High Steel Profile 30mm C Purlin Machine
Brand: BEST
Price: 35000 USD

Brand Name : BEST

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD35000---40000

Payment Terms : L/C, T/T

Supply Ability : 20 sets/month

Delivery Time : 30 work days

Condition : New

Weight : according to the model

Type : Steel Frame & Purlin Machine

After-sales service pro : Engineers available to service machinery overseas

Use : Roof

Tile type : Colored Glaze Steel

Contact Now

Gcr15 High Steel C Purlin Roll Forming Machine , Steel Profile Roll Forming Machine

These purlins machine are manufactured by quality approved raw materials under our experienced professionals techniques. The offered purlins are extensively used in the construction of buildings and can be made in various shapes, sizes and thickness.

Material of coil	Material Thickness	1.5-3.0mm
	Width	from 80mm to 300mm
De-coiler	Weight	3 ton manual decoiler
Forming system	Rolling Speed	0-12 m/min
	Roller Stations	About 18 roller stations
	Roller Material	Gcr15 Steel with quenching 50-55HRC
	Shaft Material	45# Steel Diameter 76mm shaft
	Main Motor Power	11KW
	Hydraulic cutting Power	7.5KW
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	1 set of cutting blade
Electrical control system	Electric Source	380V, 50HZ, 3phase
	Control System	PLC with touch screen
	Weight	About 6 tons
	Way Of Drive	Chain driven

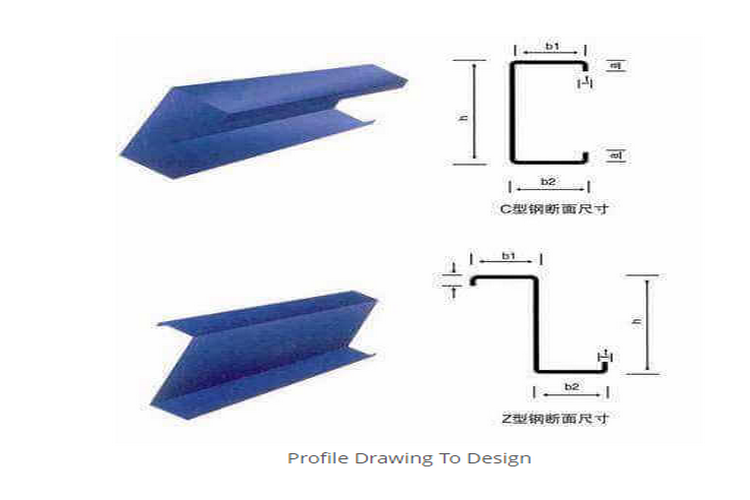

C Purlin Technical Parameter

Equipment name	Quantity
3T manual uncoiler	1 set
Roll forming machine	1 set
Hydraulic cutting	1 set
Hydraulic punching	1 set
Hydraulic station	1 set
4 meters out tables	1 set
Control box	1 unit
Spare parts	1 package

Each part of C Purlin Machine

1.3T Manual De-coiler
Diameter: 460-520mm expansion.
Capacity: 3 Tons
Max Coil Width: 500mm

2.Leveling device

Put the raw material(steel plate) through the beach to manufacture and process

Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.
7 rolls leveling, 3 rolls up and 4 rolls down,it can guarantee that the products are neat, parallel and everything is uniformi

3. Punching and cutting device

It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products

hydraulic station pressure: 20 MPa
Hydraulic coil:46#
Components: It contains one set of blade, one hydraulic cylinder and one cutter machine

cutting blade material:Cr12 Mov steel with high treatment

4.Control Box

(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.
