1250mm & 1000mm Adjustable Roofing Sheet Panel Roll Forming Machine
1. Company information:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
2. Machine details:

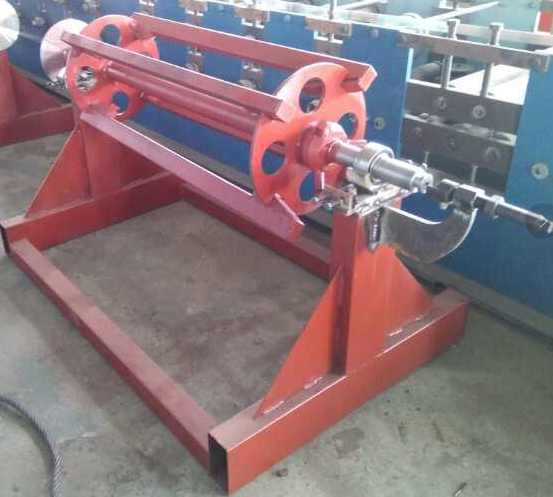

DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

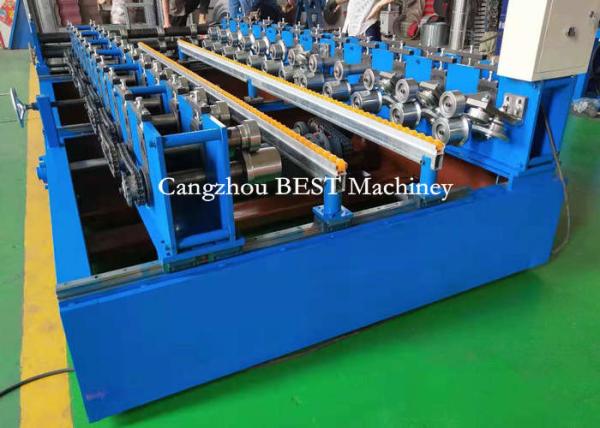

ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 12groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°
(5) Diameter of shaft: 70mm
(6) Machien can adjust, and can produce different raw material width
CUT-OFF DEVICE
(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC58 – 62°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw
PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4) Length Error: ±2mm
(5) Language: English and Chinese
(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
HYDRAULIC PUMP STATION
(1) Motor power: 3 kw
(2) Oil type: 46# hydraulic oil
(3) Pump brand: China brand
PRODUCTION SUPPORT TABLE
(1) No power type
(2) Length: 2m
3. Packing
Standard Export Packing.
1). One 40ft container for loading one set machine with manual decoiler;
2). The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3). Spare parts and some small parts packed in plastic tooling box;
4). All Components Fixed by steel wire with Container.
4. Installation and Training:
| 1 | If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. |
| 2 | Without visiting, we will send you user manual and video to teach you to install and operate. |
| 3 | If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things. |
5. Roll forming machine manufacturer in China
We , located in China, is a professional roll forming machine manufacturer. Our products include roof panel forming machine, sandwich panel production line, tile forming machine, corrugated sheet forming machine, floor deck forming machine, and more. Our forming machine provides high precision, high efficiency, great durability, easy operation, stable performance, and low maintenance cost. Our products are widely used in the construction of light steel structures, industrial factory buildings, warehouses, living quarters, simple steel sheds, villas, pavilions, terraces, and towers, to name a few.
6. Photos for reference:
We also provide color steel coils for customers,Many customers have to buy raw materials in China,But many times they are easy to be cheated.So we can help you buy raw materials and provide the most favorable price, and we can guarantee the quality.
