8-12m/Min Plc Roofing Sheet Roll Forming Machine

Name: 812mMin Plc Roofing Sheet Roll Forming Machine
Brand: CHBEST
Price: 1 USD

8-12m/Min Plc Roofing Sheet Roll Forming Machine Manufactures

Brand Name : CHBEST

Model Number : XY800

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Supply Ability : 20 sets/month

Delivery Time : 20-30 days

Packaging Details : plastic film for naked machine

Product name : Color Steel Profile Trapezoidal IBR/Corrugated/Roof Tile Three Layer Roofing Sheet Machine

Color : Blue or as your request

Machine speed : 8-12m/min

Driven system : Chain or gear box

Control system : PLC

Cutting type : Hydraulic

Contact Now

Color Steel Profile Trapezoidal IBR/Corrugated/Roof Tile Three Layer Roofing Sheet Machine

Parameter

Product	three layer roof sheet roll forming machine
MODEL	YX800
Base material	GI/GL,PPGI/PPGL,Aluminum coil
Thickness	0.3mm-0.8mm
Effective Width	600-1250mm (according to your need)
Roller station	14-18 stations
Roller material	45# steel / Bearing steel/ Cr12Mov
Roller driven type	By chain/ gearbox
Color	According to customer requirements
Brand	BEST
Control System	Worldwide Famous Brand PLC (Panasonic, Siemens, Delta, etc)
Power	4KW-5.5KW-7.5KW
Frame	350 H steel / 400 H steel
Cutting drive	Hydraulic drive
Cutting&Hydraulic type	Type:double guide pillar hydraulic cutting. Hydraulic pump station :4kw Blade:Cr12mov HRC:58-62
Feature	Building metallic materials have excellent performance of decoration, corrosion resistance etc, easy to operate, energy saving,flexible manufacturing,high productivity, eco-friendly.

Specifications:

Name:Manual decoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading
capacity:5T,Inner diameter: 500-508mm

Name:Feeding table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron. Remarks:Pre-hand cutting is manual

Name: Main rollers
Material of rollers:High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.


Name:Computer Control Cabinet

PLC:Delta PLC(or according to customer's inquirement)
Touch Screen:Delta Frequency system:Delta Chinese/English and Russian Or Spanish


Name: Cutting head

It adopts the Motor drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment

Name: Received goods table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. 2 pieces 3meters

Packing
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

 - 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

 - 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
 exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.

 - 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the
 machine,they can teach you how to operater the machines.

Product Tags:

12m/min roofing sheet roll forming machine

8m/min roofing sheet roll forming machine

plc roofing sheet roll forming machine

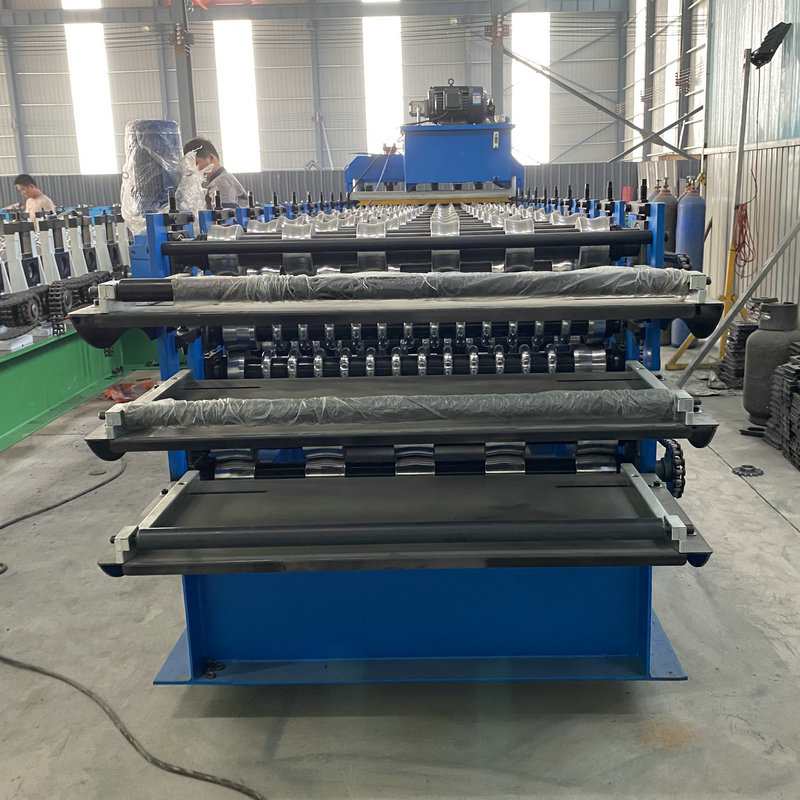

8-12m/Min Plc Roofing Sheet Roll Forming Machine Images
