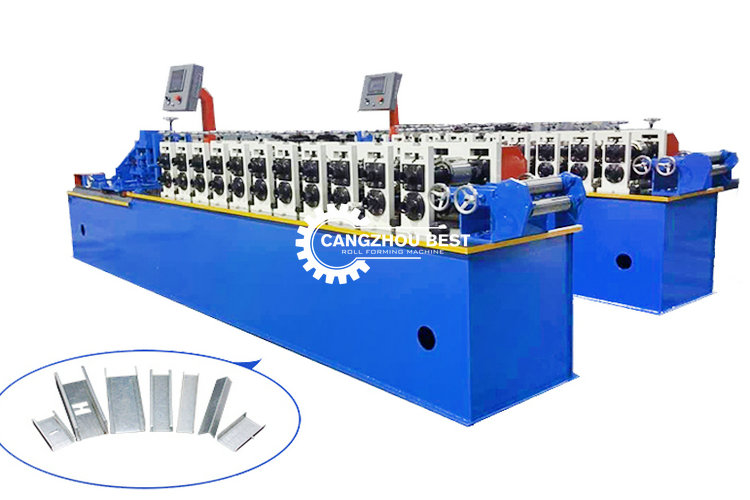

C Channel GI Steel 1.0mm Metal Stud Machine

Product Categories

Cangzhou Best Machinery Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: C Channel GI Steel 10mm Metal Stud Machine
Brand: BEST
Price: 8000 USD

Brand Name : BEST

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD8000---15000

Payment Terms : L/C, T/T

Supply Ability : 20 sets/month

Delivery Time : 30 work days

Thickness Range : 0.3-0.7mm

Material Stress : 235MPa 345MPa And 550MPa.

Roller Material : No.45steel

System : PLC Control Automatic System

Contact Now

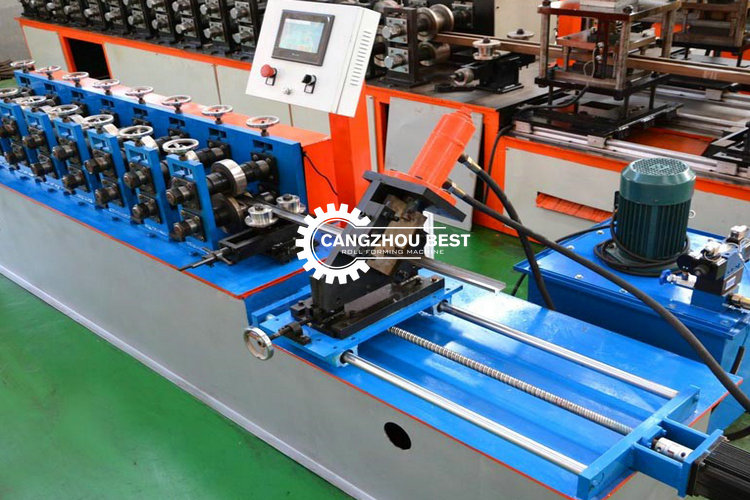

C Channel Stud And Track Roll Forming Machine For GI steel 0.4-1.0mm Thickness

Technical data of metal roof tile roll forming machine

Suitable material	color steel sheet;0.3-07mm,
Working speed	about10-25m/min
stress	235MPa,345MPa,550MPa.
Power	Main motor power: 5.5 Kw(Depend on final design)
Power	Hydraulic station power: 4Kw(Depend on final design)
Material of forming rollers	No.45 steel, plated with chrome on surface.
Material of cutter,pressing die	Cr12 mould steel with quench treatment, HRC58-60
Material of shaft	High quality 45# steel, Roller grinder milling.
Shaft diameter	72mm
Controlling system	Mitsubishi PLC & converter
Total weight of machine	About 9500KGS
Machine’s size	about 18m×1.8m× 1.5m (Depend on final design)

Layout drawing of machine

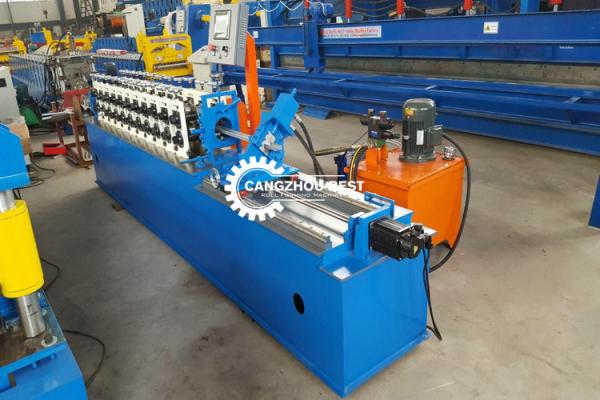

C Channel GI Steel 1.0mm Metal Stud Machine
