C89 C100 C140 Light Steel Keel Ceiling Metal Roll Forming Machine For Building
Light Gauge Steel Frame Machine--C89 villa frame rolling forming machine is designed to make the C89 light frame in batch fully automatic.
Mainly it is used for drywall building part. the 89 model is generally used as the outer wall and the inner wall of the third floor or the partition wall (this equipment can be completed under the third floor); Generally used as an outer wall of six or less layers (in order to save materials, the outer wall is generally 140 models, and the inner wall is 89 models).
Machine Component
| Decoiler | 1set |
| Roll Forming Machine | 1set |
| Cutting Device | 1set |
| Multi Revsiting | 1set |
| PLC Control Box | 1set |
| Hydraulic Pump | 1set |
| Output Table | 1set |
Decoiler
Max. Width:300 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1000 mm
Max. Loading Capacity: 3000 kgs
Type: Manual Or Hydraulic (Optional)

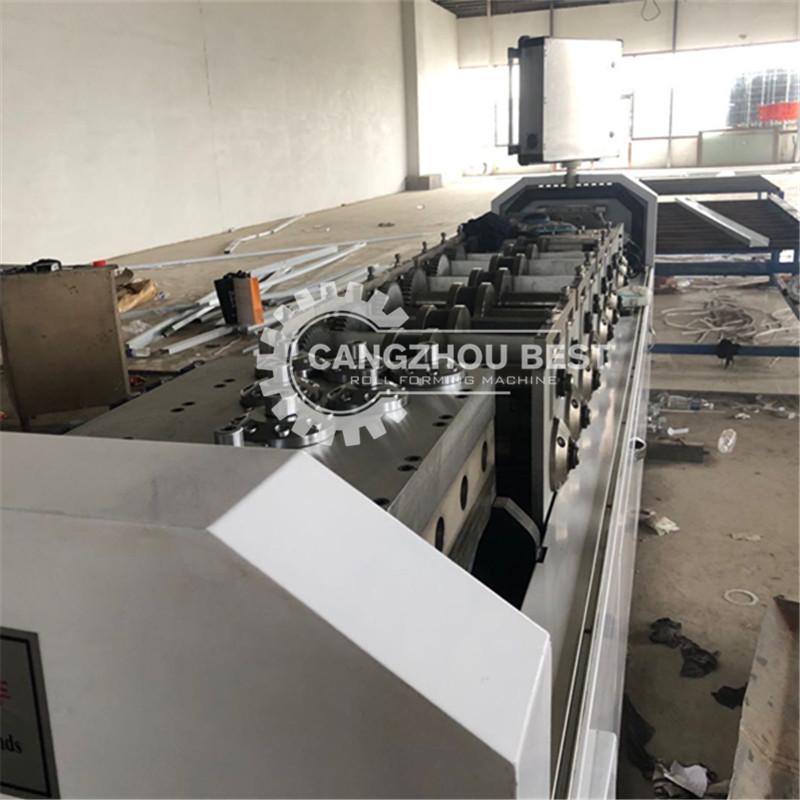

Roll Forming Machine
Material Thickness: 0.6-1.2mm PPGI and GI
Roller Stations: 14 groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 65mm
Bottom frame: 36# H-section steel
Motor Power: 3kw
Driven type: 1.0＂Chain
Diameter of shaft: 65mm
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Cutting Device
| Type | Hydraulic, Automatic Cut-Off |
| Power | 3kw |
| Cutting Blade Material | Cr12 steel after treatment Hardness for Heat Treatment:HRC55 – 60° |
Multi Revsiting Device
Rollers: 1 group
Material for roller: 45# steel polished and coated with chrome HRC55-60°
Functon:it uses for revising the finished product to make the product straight.
Control System

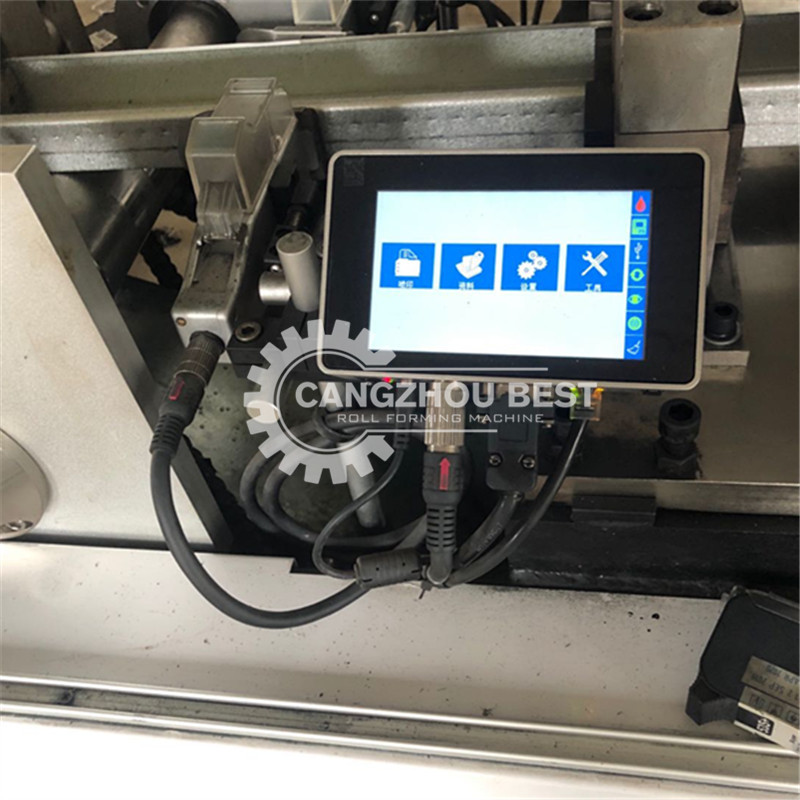

Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Hydraulic Pump
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system | Cooling fan |
Output Table
No power type
Length: 2m
Work Flow
Decoiler------feeding------roll forming------cut to length----multi-revising -----output table
Packing Detall
| 1. | 40 GP container ; main machine naked and fastened with iron wire in the container. |
| 2. | Rollers were painted with oil and packed with plastic film. |
| 3. | Electrics devices be packed with wooden box.for Standard export packing. |
| 4. | All Components Fixed by steel wire with Container. |
RFQ
Step 1: Tell us your requirements
Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative
Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.
