Road Safety Highway Guardrail Roll Forming Machine 22kw Power PLC Control

Name: Road Safety Highway Guardrail Roll Forming Machine 22kw Power PLC Control
Brand: BEST
Price: 1 USD

Road Safety Highway Guardrail Roll Forming Machine 22kw Power PLC Control Manufactures

Brand Name : BEST

Model Number : YX316

Certification : CE

Place of Origin : CHINA

MOQ : 1set

Supply Ability : 15sets/month

Delivery Time : 55days

Packaging Details : naked 1x40GP

Name : Road Safety W Beam Crash Barrier Express Highway Guardrail Roll Forming Machine

Voltage : 380v or 220v

Power : 22kw

Control system : PLC

Roller stations : 14groups

Contact Now

Road Safety W Beam Crash Barrier Express Highway Guardrail Roll Forming Machine

Machine component:

Decoiler, leveling device, forming machine,cutter, output table, control box and hydraulic oil pump

Machine Details:

Production Material :Steel Plate
Operation	Full automatic
Voltage	AC380/50Hz
Quantity Of Roller	14 groups
Pressure roller neck	60
Machining steel plate thickness(mm)	1.8-2.6mm
Width of molding(mm)	According to drawing
Production line working speed	0-15m/min
Cut type	Hydraulic pressure Independent cut
Cut bar material	cut bar use Cr12mov material,After the high temperature quenching
Weight	12000Kg
Machine size(mm)	120019001800
Roll mandrel material	45# steel tempering,finish turning,accurate grinding process
Roller mold material	Bearing steel vacuum quenching,CNC finish turning
Production main motor power(kw)	22KW
Hydraulic system power	7.5KW
Drive type	Gear box

Detail description

5T hydraulic decoiler:

Steel coil width: from 1000 mm to 1250 mm;
Internal diameter of coil: variable, from 480 mm to 530 mm
Maximal out diameter:2000mm
Maximum coil weight: 5000 Kgs;
Coil placement in the coil holder: hydraulic hoist;
Pulling of steel from the coil to the pulling mechanism for the start: manual;
Suitable of the pulling mechanism for all required thicknesses: included;
Device preventing unwinding of the coil from the coil holder: included;
Uncoiled metal compensator: included, assures even feeding at all production speeds;
Oil cylinder dia:120mm
Working speed: 0-15m/min adjustable
Main motor power: 5.5KW AC motor
Hydraulic power: 4kw

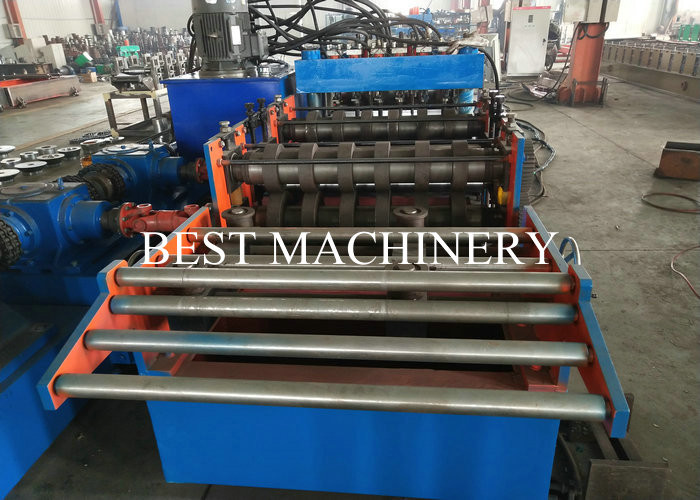

Leveling device

The quantity of leveler rolls must be planned according to thickness 2.0mm to 3.0 mm.
Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
Diameter of flattener shaft:￠70mm, material is SAE 1045, hardening and tempering

Punching:

Adopt Hydraulic punching
Diameter of cylinder￠140mm
Working pressure: 20mpa
The punches and dollies will be CR-12, hardness HRC 58-62
Hydraulic power :11KW
Dimensions: 1.5m* 1.1m* 1.2m

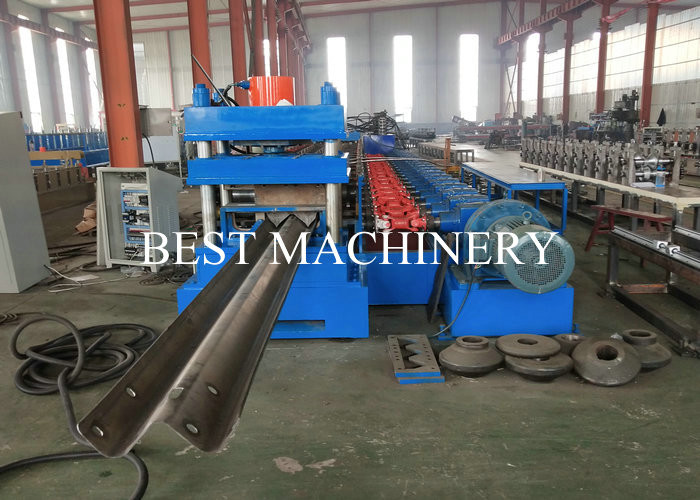

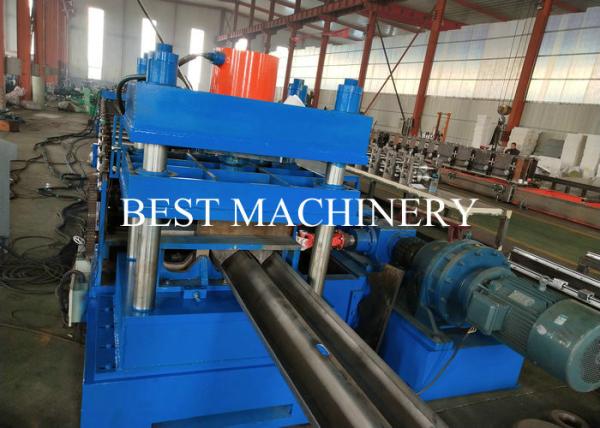

Roll Forming

Main motor power : 22 kw
Cycloidal pin wheel reducer : BWD14-43-55KW,Place of Origin:Shanghai or Cangzhou
Transmission:Gear box【170#】
Shaft diameter: ￠110 mm material: SAE1045 with quenching and tempering
Roller material:ASTM1045 chrome plated surface with chrome
Forming station: about 16 stations (according the final design)
Machine roll forming speed :0m-15m/min(without punching)
Machine Voltage, Frequency:Japan Yaskawa(380 V, 50 Hz, 3Phase)

Cutting :

Shearing by hydraulic station

Material of blade:Cr12, 58-62 HRC hardness
Diameter of cylinder￠200mm
Working pressure:30mpa
Working range :80mm
