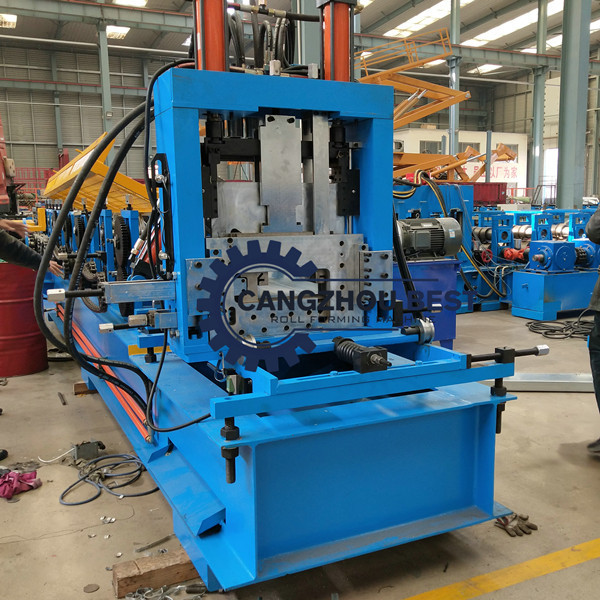

C 6m/Min Z Purlin Roll Forming Machine , Steel Channel Quick Change Cold Forming Machine

Name: C 6mMin Z Purlin Roll Forming Machine Steel Channel Quick Change Cold Forming Machine
Brand: CHBEST
Price: 1 USD

Brand Name : CHBEST

Model Number : XY80-200

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Supply Ability : 20 sets/month

Delivery Time : 30-40 days

Packaging Details : plastic film for naked machine

Product name : c and z purlin steel channel quick change automatic roll forming machine

Machine speed : 4-6m/min

Machine dimention : 7.5mx1.8mx1.4m

Driven system : Chain or gearbox

Control system : PLC

Life time : more than 10 years

Contact Now

Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change

Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

Machine Component

De-coiler	1 set
Leveling device	1 set
Forming machine	1 set
punching device	1 set
Cutting device	1 set
PLC control box	1 set
Hydraulic pump station	1 set
Production support table	1 se

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	500mm	600mm
Capacity	5000kgs	5000kgs-8000kgs
Inner diameter	450-550mm	450-550mm
Outter dimater	1500mm	1800mm

roll forming machine

(1) Material Thickness: 1-3 mm
(2) Rollers: 12Groups
(3) Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°

(4) Material for shaft: #45 steel after treatment

(5) Diameter of shaft: 80mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 11kw
(9) Rolling Speed: 8-10 m / min

(10) Driven type: 1.5＂Chain

Punching device

Item	Parameter detail
Frame processing	the whole levelling surface is made by drilling machine
Mould material	Cr12mov
Mould processing	wire eletrode-cutting for the mould shape, it will save pressure
Hole size	According to your request
Hole number	According to your request
Pressure	20Mpa

Cutting device

Type	Mould cutting
Blade material	Cr12mov quenching and grinding
Frame processing	the whole bottom frame is grinding for high-precision
Blade processing	wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
Working	Hydraulic type

Stacker

Type	Manual	Auto(option)
Length	2pieces, length is adjustable	according to your requirement

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

Hydraulic pump

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan

1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A: 1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer`s factory for the installation and trainning .
3. What about your warrenty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
