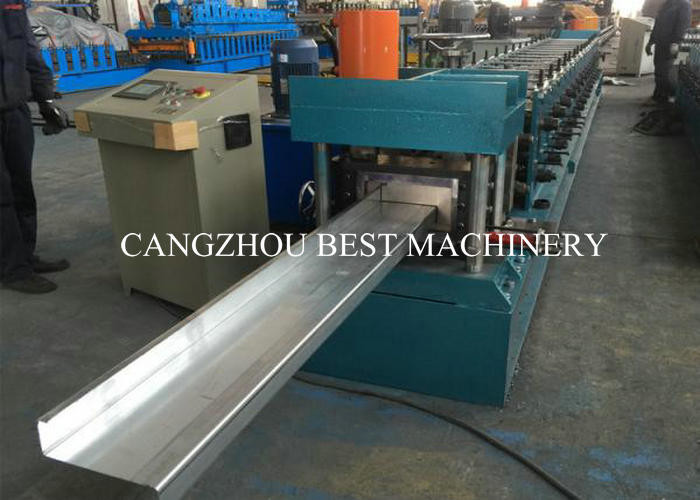

Galvanized Steel Z Section Purlin Roll Forming Machine for Building Material
Working flow

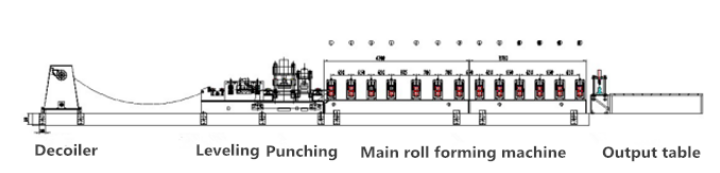

Decoiler -- Leveling -- Punching -- Main roll forming -- Cutting---Products to run out table
Technical Detail
A. Decoiler
| No : | Decoiler System Main Parameter : |
| 1 | Loading capacity | 1.5-3.0T |
| 2 | Uncoiling width | 300-1000mm |
| 3 | Inner diameter | 450-550mm |
B.Forming machine
| No : | Roll Forming System Main Parameter : |
| 1 | Length of the main part | about 3000*1000*400-8800*1500*1200 |
| 2 | Weight of main part | 3-8 tons |
| 3 | Voltage | 380V/50HZ3Phase (as customer’s request) |
| 4 | Roller fixer | guide column |
| 5 | Frame | steel plate welded/ Memorial arch frame type |
| 6 | Frame thickness | 25mm |
| 7 | Drive mode | gear |
| 8 | Material of rollers | GCr15MoV |
| 9 | Material of shafts | 45# steel with tempering |
| 10 | Diameter of shafts | φ40mm |
| 11 | Number of rollers | 10-16 rollers |
| 12 | Main power | 3-11kw |

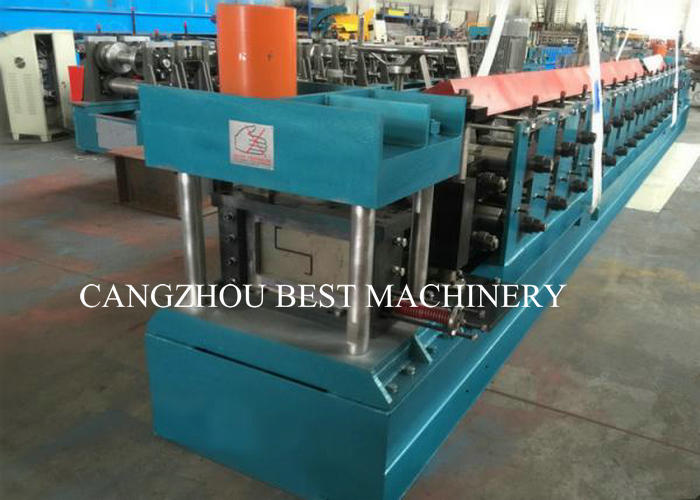

C.Cutting
| No : | Cutting System Main Parameter : |
| 1 | Material of blades | Gcr12MoV quenched |
| 2 | Power supply | hydraulic power |
| 3 | Frame | Pillar style with rack & pinion system |
| 4 | Stroke switch | non-contact photoelectric switch |
| 5 | Hydraulic motor Power | 3-5kw |
| 6 | Hydraulic oil: | 46# |
D. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP14ES |
| Well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
| Frequency Converter | Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
| Length Measurement Device | Omron, made in Japan. |
| It features with high accuracy and stability. |
Our advantage:
Over 20 years' rich experience!
a.Specialized in roll forming machine since 1998.
b.Keeping improving the quality.
2. Low price
Save your money from every part!
a. Low labor cost;
b. Convenient transportation;
c. Complete supporting industries.
3. PLC
Ensuring high accuracy and easy to operate!
Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
4. OEM / ODM
Customers’design, color & logo are also accepted!
Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
5. One-Years warranty, whole life service
Keep troubles far away from you!
Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .
Our service:
1. One year warranty, whole life technical support.
2. Installation & adjustment: We can take video for the customer and customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and pay salary everyday.
Packing and Loading:
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
