Galvanized Metal Sheet Forming Machine / Building Material Machine Low Noise

Name: Galvanized Metal Sheet Forming Machine Building Material Machine Low Noise
Brand: BEST
Price: 14000 USD

Galvanized Metal Sheet Forming Machine / Building Material Machine Low Noise Manufactures

Brand Name : BEST

Certification : CE/ISO9001

Place of Origin : CHINA

MOQ : 1 set

Price : USD14000-28000

Payment Terms : L/C, T/T,

Supply Ability : 20 sets/month

Delivery Time : 30 work days

Packaging Details : 1.Naked but fixed in the container with iron wire to ensure that the machine is kept from collision; 2.Rust-proof treatment(whole machine covered by plastic film); 3.Spare parts and some small parts shall be packed in boxes

After-sales service provided : Engineers available to service machinery overseas

Condition : New

Tile type : Colored Glaze Steel

Use : Roof

Warranty : 2 Year

Contact Now

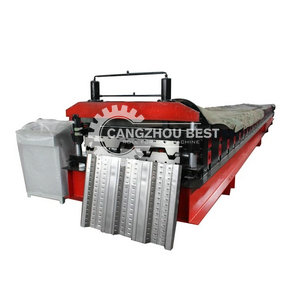

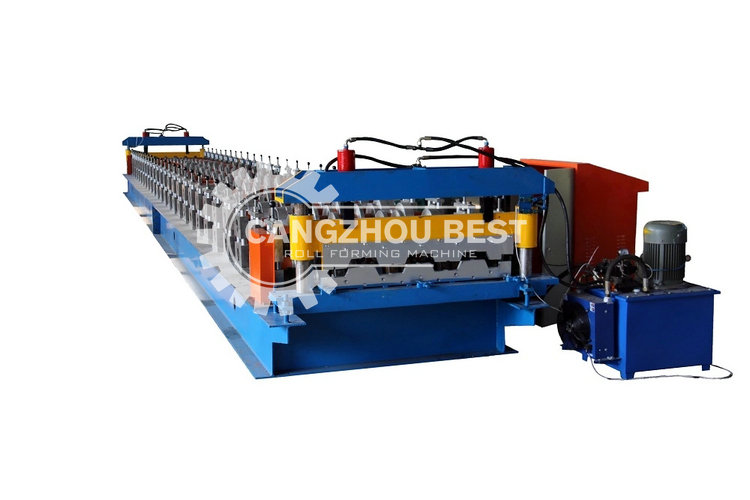

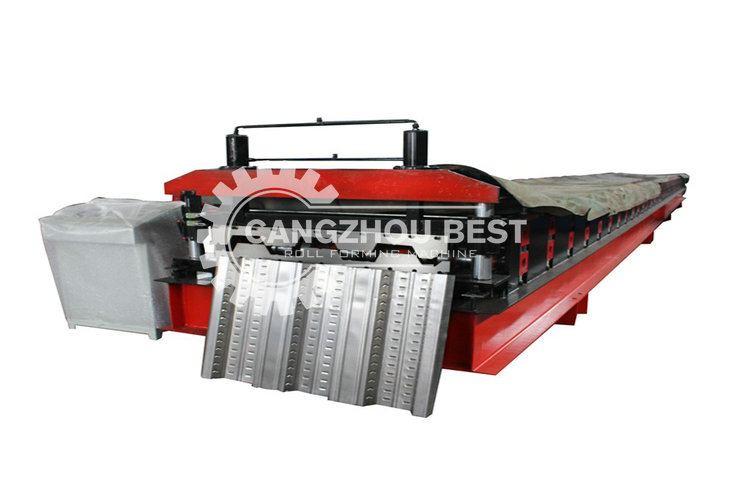

Galvanized Metal Floor Decking Sheet Roll Forming Machine Building Material Machine

Product Name	Botou Galvanized Metal Floor Decking Sheet Roll Forming Machine Building Material Machine
Suitable material	pre-painted coil, galvanized coil
Feeding width	1000mm
Effective width	720mm/750mm/760mm
Thickness	0.8-1.5mm
Dimensions (LWH)	1600016001300mm
Roller station	24 up to final design
Productivity	8-12m/min
Middle plate thickness	20mm
Total power	Motor power:11+11kw

Product Description

new quality Steel sheet floor tile making machine, Steel Metal Decking Tile Sheet Roll Forming Making Machine Price

No.	Floor tile making machine
1	raw material	suitable material	colored steel coil, galvanized coil, aluminum coil
		feeding width	1000mm
		effective width	720mm
		thickness	8-1.2mm
PS: the feeding&effective width can be any according to your need.
2	rollers	material	Gcr15
		rows	25 rows
3	shafts	material	45#steel, solid ones
		diameter	Φ90mm and 120mm
4	cutting blade	hydraulic cutting, Cr12 Mov
5	capacity	15-20m/min, can be faster as your need.
6	weight	13Tons
7	control system	PLC control system with inverter inside to assure the working precision within 1mm
8	dimension	1150016001550mm
9	machine base	400mm H beam
10	middle plate	20mm
11	chains	double1.2 inch
PS: the above are for reference, we can design according to your requirement

Spec of Components

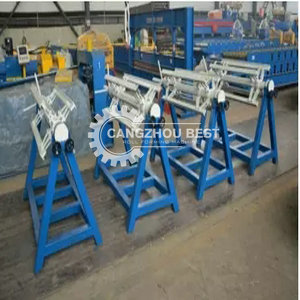

Manual uncoiler
Usage	It is used to support the steel coil and uncoil it in a turnable way.The steel coil is uncoiled by hand.
Loading capacity	5T
Inner diameter	450-508mm

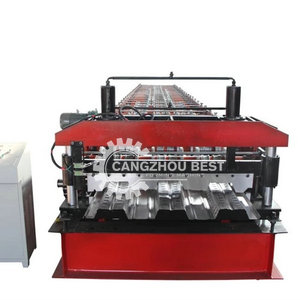

Main roll forming part
Material of the rollers	45# steel,rollers surfaces polishing, hard plating.
	The polished surface and the heart treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped

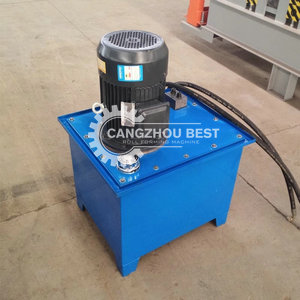

Hydraulic system
Power	up to final design
Hydraulic oil	46# hydraulic oil
Color	blue (or as your customer's need)

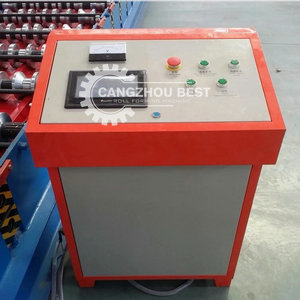

Computer control cabinet
Programmable setting of propile length and quality,computed mode has two modes	automatic and manual one
Language	English Chinese Spanish and Russian The system is easy to operate and use.
Cutting device
Material of the cutting	Cr12,quenching treatment
	It can decide panel dimension according to the hydraulic drive and PLC computer control system

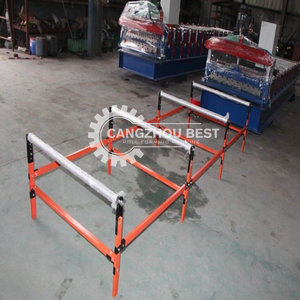

Receiving table
	Main framework adopts welded steel and supported roller,used for transmit and collect the finished products
