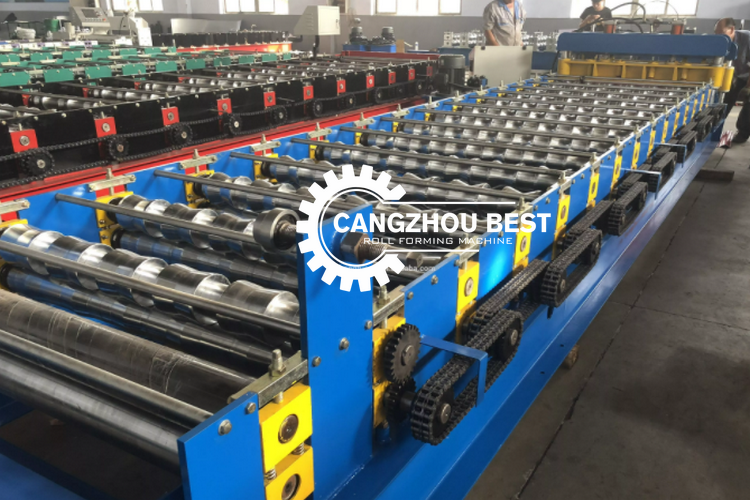

Trapezoidal 0.6mm 14m/Min Metal Roofing Machine

Brand Name : BEST

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD$8000---10000

Payment Terms : L/C, T/T

Supply Ability : 20 sets/month

Delivery Time : 30 work days

Tile type : Colored Glaze Steel

Voltage : 380V 50Hz 3phases

Condition : New

Weight : around 10.0 Tons (depend on final design)

Use : Roof

After-sales service provided : Engineers available to service machinery overseas

Contact Now

ItemParameters
Processing MaterialPPGI,GI
Processing Thickness(mm)0.6-1.6mm
Main Frame/Middle plate

H400 Steel Beam/
20mm Steel plate

Material of Rollers45# steel, with hard chrome coated
Diameter of Shaft100mm
Number of Rollers26 stand rollers
Production Speed0-14m/min
Roller DrivenDecelerating Motor+20A Chain Transmission
Cutting ModelHydraulic Profile Cutting
Length MeasurementEncoder
Control StylePLC
Operation ModelButton + Touch Screen
Total Power27.5kw
Voltage380V 50HZ or at buyer's request
Testing MaterialQ195

Product Description
Name: Manual decoiler
Purpose: Used to support the steel coil and untie the steel coil by rotation.
Capacity: 5T, inner
Diameter:500-508mm
Name:Feeding table
Usage:Put the raw material through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.
Remarks:Pre-hand cutting is manual
Name:Main Roller
Roller material: High-quality 45# forged steel
Forging process:The surface of the roller has been polished, chrome-plated,
polished, and high temperature treated. Characteristic:The surface of the mold is smooth and wear-resistant, and it is not easy to be marked during stamping.
Name:Computer Control Cabinet
PLC:The PLC control system introduces computer technology, automatic control and other technologies based on traditional controllers.
Brand:Delta PLC (or according to customer requirements)
Touch screen: Delta frequency conversion system: Chinese/ English/Russian/ Spanish
Name:Hydraulic station power
Hydraulic station power:4Kw
Brand:Delta, Matsushita, Li Chao, Simence (or according to customer requirements)

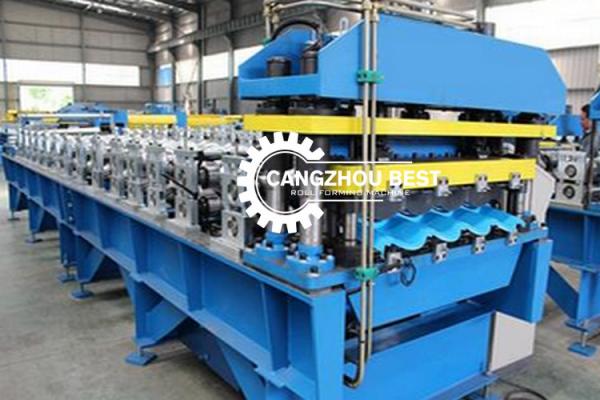

Name:Cutting head
Features: The cutting head uses an electro-hydraulic cutting system and automatic positioning function to determine the size and
cut the target product.
Blade material: Cr12, forged by heat treatment.
Engineering case

Trapezoidal used metal roofing machine is widely usedin the construction of various.
iIndustrial manufacturing, villages, warehouses, supermarkets, hotels, exhibition halls, home buildings, etc. It has a three-dimensional and smooth shape, colorful and colorful colors, and can also be customized according to customer requirements for different corrugated board patterns, colors, shapes and corrugated boards of different thicknesses.
Trapezoidal 0.6mm 14m/Min Metal Roofing Machine
