Floor Decking Sheet Steel Automatic Roll Forming Machine Supplier
Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Pressing die---------------------------------------1set

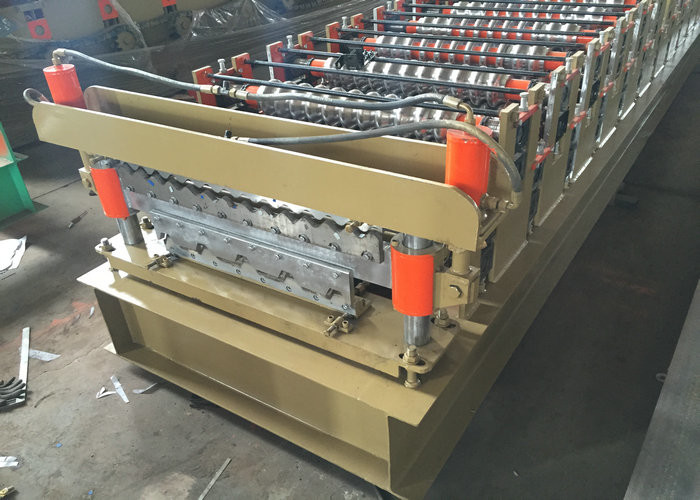

Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Decoiler
Max. Width: 1250 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs
Type: Manual Or Hydraulic (Optional)

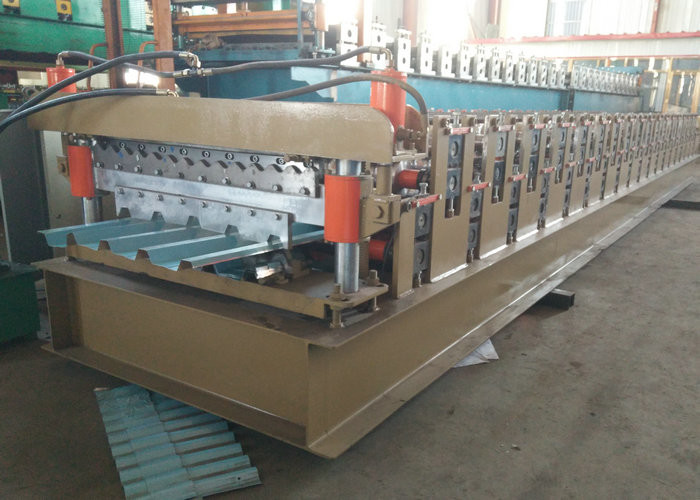

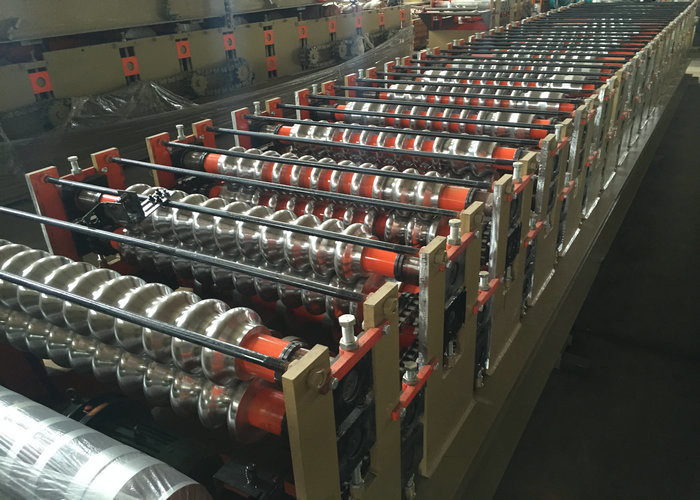

Roll Forming Machine
Material Thickness: 0.7-1.5mm
Rollers: 28groups
Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
Shaft Diameter: 90mm
Frame panel thickness: 20mm
Bottom frame: 35# H-section steel
Motor Power: 2*11kw
Driven type: 2.0＂Chain
| o. | Parameter |
| 1 | raw material | suitable material | colored steel coil, galvanized coil, aluminum coil |
| feeding width | 1200mm |
| effective width | 988mm |
| thickness | 0.3-0.8mm |
| PS: the feeding&effective width can be any according to your need. |
| 2 | rollers | material | 45#steel |
| rows | 20 rows |
| 3 | shafts | material | 45#steel, solid ones |
| diameter | Φ90mm and 120mm |
| 4 | cutting blade | hydraulic cutting, Cr12 Mov |
| 5 | capacity | 15-20m/min, can be faster as your need. |
| 6 | weight | 13Tons |
| 7 | control system | PLC control system with inverter inside to assure the working precision within 1mm |
| 8 | dimension | 11500*1600*1550mm |
| 9 | machine base | 400mm H beam |
| 10 | middle plate | 20mm |
| 11 | chains | double1.2 inch |
| PS: the above are for reference, we can design accordin |
Working Flow
Decoiler------feeding -------roll forming------cut to length-----output table
Packing Detall
| (1) | 40 GP container ; main machine naked and fastened with iron wire in the container. |
| (2) | All Components Fixed by steel wire with Container. |
| (3) | electrics devices be packed with wooden box.for Standard export packing |
| (4) | rollers were painted with oil and packed with plastic film. |
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
After-Sales-Service
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
