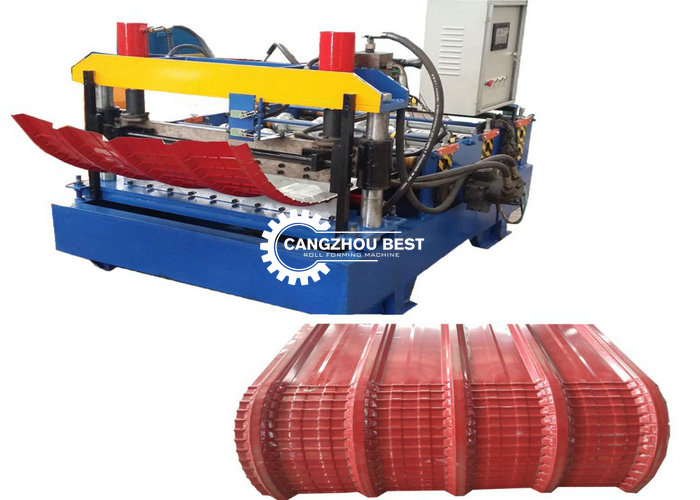

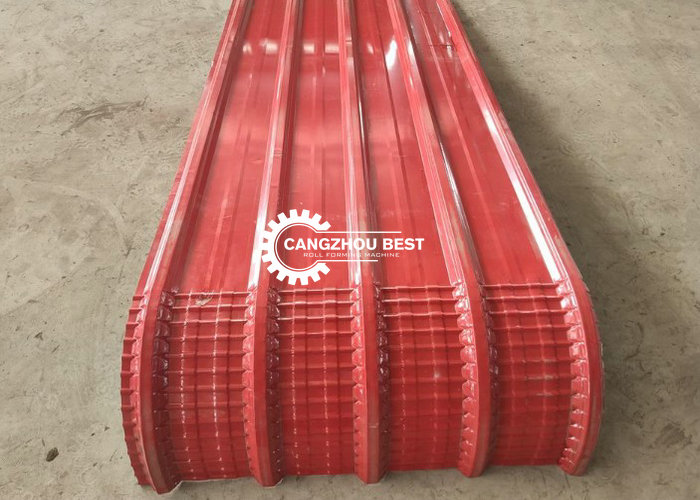

Color Steel Coated Roof Panel Curving&Crimping Sheets Roll Forming Machine
Specifications
| 1 | Main frame | 250mm H-sections |
| 2 | Side board thickness | 14mm |
| 3 | Main motor power | 3kw |
| 4 | Power supply | 380V 50-60Hz |
| 5 | Shaft number | 3 rows |
| 6 | Shaft material | Carbon steel 45# |
| 7 | Shaft diameter | 70mm |
| 8 | Rolling wheel material | Carbon steel 45# with chrome plated |
| 9 | Hydraulic pump motor power | 4kw |
| 10 | Chain size | 33mm |
| 11 | Control system | PLC Delta inverter |
| 12 | Production rate | 4-8m/min |
| 13 | Feeding tiles | Formed tiles |
| 14 | Finished specification | According to the formed tiles |
| 15 | Overall size | 3000*1300*600mm |
| 16 | Total weight | About 0.5 Ton |
| *Parameters above is the standard configuration *Parameters can be designed as per your special requests. |
This is hydraulic bending machine, it has 2 meters, 4 meters and 6 meters different length size. The die is movable according to customer's profile design.
Advantage
1.The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width, we can design the machine according as the request.
2.When we finish the machine, we will test the machine and adjust the machine many times to be sure the machine have a perfect status.
3.when customer receive the machine, the machine can be used very easy.
Sales Service
A. Foreign debugging
We will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $100for each engineer every day and should be responsible for transportation (including round-trip ticket), insurance, and suitable accommodation.
B. Guarantee period
1.The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
2.If the equipment are out of work in the guarantee period, the buyer needs our repairman to come to buyer’s factory, the buyer should be responsible for the tickets(including round-trip ticket), the fee of transportation to the buyer’s factory andaccommodation. Required to change spare parts, the buyer should afford the freight fee and we don’t ask extra fee.
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment.
Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Lifetime services to every customer.
Packing
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
